Ouster Y-Cables with RJ45

Name: Ouster RJ45 Y-Cables
Brand: Ouster
SKU: 1acf94c4-b983-4a4b-91e4-d42a671e2fc2
Price: 180 EUR
Availability: InStock

Ouster | A-000000-08440

€180.00 VAT incl. €150.00 VAT excl.

Ouster Y-cables with RJ45 allow an Ouster LiDAR to be connected directly to an Ethernet network and a power supply, without using an Interface Box.

Quantity

Delivery within 2 weeks

Ask for a quote

Create a cart and turn it into a quote instantly!

Payment methods (see T&C)

Key features of Ouster Y-cables with RJ45

Direct connection of an Ouster LiDAR without an Interface Box
Y-shaped architecture: separate Ethernet and power connections
Female RJ45 Ethernet connector
Female DC power connector
Available in 1 m, 5 m, 10 m and 15 m
5 m version with right-angle Ouster connector
Ouster Type 3 cable
Outer diameter: 8.2 ± 0.3 mm
Nominal voltage with Ouster sensors: 12 V or 24 V
IP68/IP69K Ouster connector on the sensor side
Designed for production environments and outdoor installations

Direct Ethernet and power connection

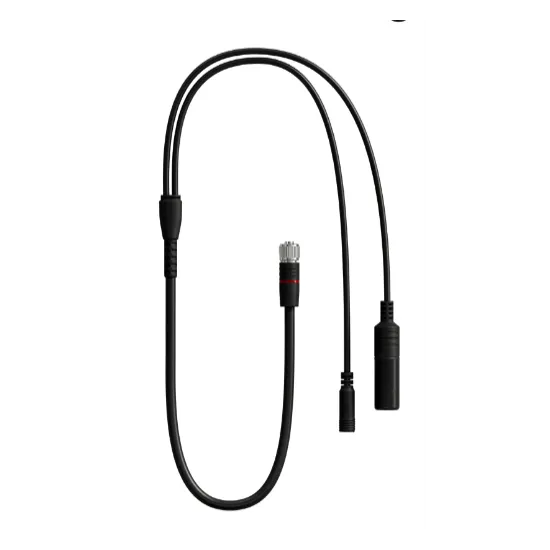

The Ouster Y-cable features a proprietary connector on the sensor side and then splits into two branches. The first ends in a female RJ45 Ethernet connector for data transmission, while the second integrates a female DC power connector.

This architecture enables the LiDAR to be connected directly to a network infrastructure and a compatible power supply, without using the Ouster Interface Box.

Several lengths and configurations

Variant	Sensor-side connector
1 m	Straight
5 m	Right-angle
10 m	Straight
15 m	Straight

A cable designed for integration in production environments

Unlike the Interface Box, which is mainly intended for development and laboratory testing, the RJ45R Y-cable is designed by Ouster for use in production environments.

The Ouster connector on the sensor side has an IP68/IP69K protection rating. The Type 3 cable uses a durable sheath and has a rated operating temperature range of -40 °C to +125 °C.

Version with right-angle connector

The 5-meter variant is available with a right-angle Ouster connector. This configuration makes LiDAR installation easier when space around the connector is limited and helps avoid excessive cable bending immediately after it exits the sensor.

Technical specifications of Ouster Y-cables with RJ45

Type	Ouster RJ45R Y-cable
Cable	Ouster Type 3
Available lengths	1 m, 5 m, 10 m and 15 m
Straight connector	1 m, 10 m and 15 m
Right-angle connector	5 m
Ethernet connection	Female RJ45
Power connection	Female DC connector, 5.5 mm outer diameter / 2.1 mm inner diameter
Nominal voltage with Ouster sensor	12 V / 24 V
Cable outer diameter	8.2 ± 0.3 mm
Minimum bending radius – fixed installation	41 mm
Minimum bending radius – mobile installation	82 mm
Rated temperature of Type 3 cable	-40 °C to +125 °C
Ouster connector protection	IP68 / IP69K
