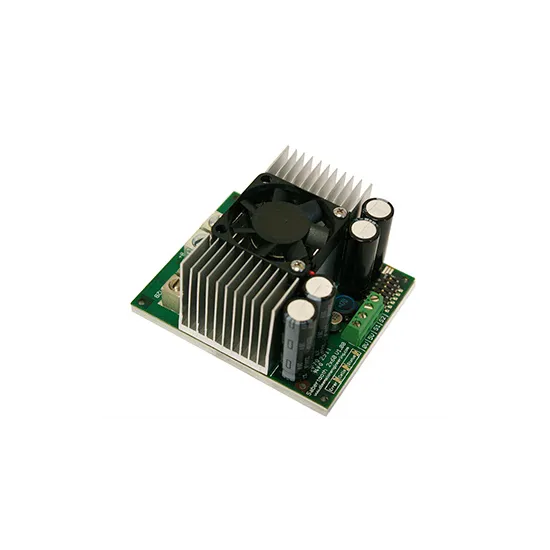

Sabertooth 2x60 Motor Driver

Name: Sabertooth 2x60 Motor Driver
Brand: Unitree
SKU: 30b1daf5-4996-4f5f-86ad-8f7b4508079d
Price: 186 EUR
Availability: InStock

Dimension Engineering | A-000000-03025

€186.00 VAT incl. €155.00 VAT excl.

The Sabertooth family is back with its most ambitious motor driver: 2 x 60A for controlling robots up to 450 kg with the necessary sensitivity!

Quantity

10 Available

Get it in 24/48h! (see T&C)

Ask for a quote

Create a cart and turn it into a quote instantly!

Payment methods (see T&C)

Dimension Engineering: a family of motor drivers for all your needs

The Sabertooth family of motor drivers designed by Dimension Engineering allows you to control motors from 5 to 60A. This version has independent speed and direction operating modes so you can drive lightweight exploration vehicles, bulkier robotics platforms, tank style robots, radio-controlled boats and more.

Sabertooth 2x60 motor driver: massively powerful

With the Sabertooth 2x60 motor driver, you can pilot huge machines: tanks, boats and other vehicles up to 450 kg, or combat robots up to 55 kg. With the regenerative drive, the batteries are charged each time the robot slows down or reverses. Do not forget to take advantage of the differential drive mode, or the 5 Vdc input that can supply power for your microcontroller or receiver (with radio control).

Technical specifications of the 2x60 motor driver

6-30V nominal, 33.6V absolute maximum
60A continuous, 120A peak (per channel)
Synchronous regenerative drive
Ultrasonic switching frequency
Thermal and overcurrent protection
Lithium protection mode
Input modes: analogue, R/C, simplified serial, packetised serial
Dimensions: 76 × 89 × 46 mm
Weight: 250 g
Supply: 6-30 Vdc (NiCd, NiMh, Lithium, lead battery) Do not use with an AC adapter
