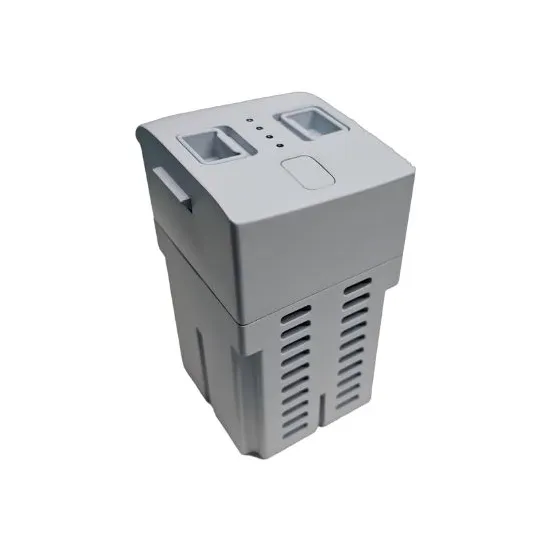

Battery for Unitree R1 (6Ah)

Name: Battery for Unitree R1
Brand: Unitree
SKU: d8bf385b-ccc4-4a09-a504-f8507123bfda
Price: 600 EUR
Availability: InStock

Unitree Robotics | A-000000-08166

€600.00 VAT incl. €500.00 VAT excl.

The battery for Unitree R1 is a replacement battery designed to power the Unitree R1 humanoid robot.

Quantity

Ask for a quote

Create a cart and turn it into a quote instantly!

Payment methods (see T&C)

A battery dedicated to the Unitree R1 humanoid robot

Dedicated compatibility: battery designed for the Unitree R1 humanoid robot.
Capacity: 6000 mAh for an energy rating of 194.4 Wh.
Nominal voltage: 32.4 V.
End-of-charge voltage: 37.8 V.
Integrated BMS: onboard management with several protection functions.
Protection functions: overcharge, deep discharge, short circuit, cell balancing and self-discharge in storage mode.

This battery is suitable for replacement, battery rotation or preparing extended test sessions on the Unitree R1. Its main purpose is to provide a power source adapted to the robot, with a dedicated format and integrated protection electronics to reduce the risks associated with intensive use.

Technical specifications of the Unitree R1 battery

Compatibility	Unitree R1 humanoid robot
Capacity	6000 mAh
Energy	194.4 Wh
Nominal voltage	32.4 V
End-of-charge voltage	37.8 V
BMS	Integrated
Protection functions	Overcharge, deep discharge, short circuit, balancing, self-discharge in storage mode, battery level indicator
Dimensions	85 × 83 × 146.5 mm
Weight	Approx. 5 kg
