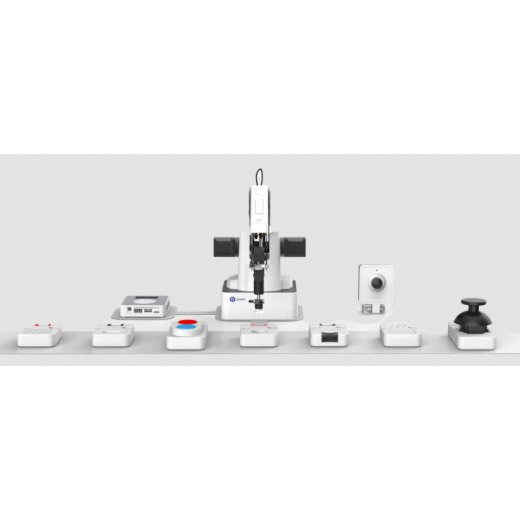

Name: DOBOT Magician Sensor Kit
Brand: Dobot
SKU: 356d4d6d-8808-4a34-99a5-bc71db515575
Price: 499.95 EUR
Availability: InStock

Beschreibung

Technische Daten

Module	Communication mode	Interface	Note
Light sensor . Knob potentiometer . Sound sensor	ADC	Port3/Port4	analog input
Joystick . Humiture sensor . Gesture sensor . Color sensor	12C	Port1~Port6	digital input
Micro servo	PWM	Port3~Port6	PWM input
LED module	single-bus	Port1~Port6	-
PIR sensor . Dual button . Photoelectric switch	IO	Port1~Port6	General IO

Joystick

Dual Button

PIR Sensor

Gesture Sensor

Connection mode: connect to any green port of Magic Box (Portl ~Port6)
Communication mode: 12C
Support gestures: Support gestures: up, down, left, right, forward, backward,clockwise, counterclockwise
Effective recognition distance: 5cm - 15cm
Voltage: 5V
Current: 50mA

Photoelect ric Sensor

Connection mode: connect to any green port of Magic Box (Portl ~Port6)
Communication mode: IO
Wiring Cable: Already attached
Value range: 0 (no shield), 1 (with shield)
Standard detection environment: sunlight less than 10000LX, incandescent lamp less than 3000LX
Object to be detected: transparent or opaque object
Operating temperature: -25°C~ 55°C
Response time: <2ms

Sound Sensor

Humiture Sensor

Color Sensor

Connection mode: connect to any green port of Magic Box (Portl ~Port6)
Communication mode: 12C
Wiring Cable: Universal Sensor Cable
Color detection result: 0: no color; 1: red; 2: green; 3: blue; 4: yellow; 5: black; 6: white
Color value RGB: 0~200 (a larger value indicates a darker color)
Voltage: 5V
Current: 50mA

LED Module

Light Sensor

Connection mode: connect to any green port of Magic Box (Port3 ~Port4)
Communication mode: ADC
Wiring Cable: Universal Sensor Cable
Color detection result: 0: no color; 1: red; 2: green; 3: blue; 4: yellow; 5: black; 6: white
Color value RGB: 0~200 (a larger value indicates a darker color)
Voltage: 5V
Current: 50mA

Knob potentiometer

Micro servo

AI Camera Kit

Dimensions: 50mm* 44mm* 25mm
CMOS: 1/4inch
Image Pixels: 1M
Image Format: YUV/MJPG
Data Format: 240* 320.640*480. 1280 720
Maximum Image Transfer Rate: 1280* 720@30fps
Camera Control: Saturation, Contrast, Acutance
White balance: Auto
Exposure: Auto
Working Temperature: 0°C to +50°C
Operating voltage: DC 5V
Interface: USB 2.0
Voice input: Integrated microphone
Feature: All-in-one design, integrated microphone, distortion-free lens
Camera working angle: 0°-135°
Function: Face recognition, image recognition, OCR text recognition, speech recognition, etc.
