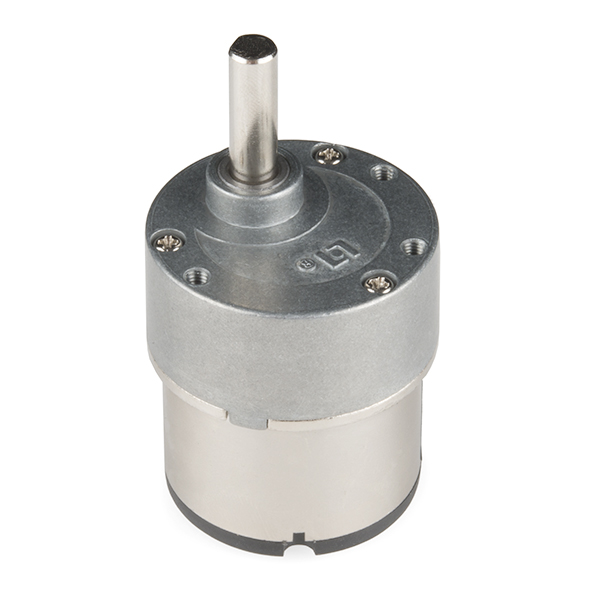

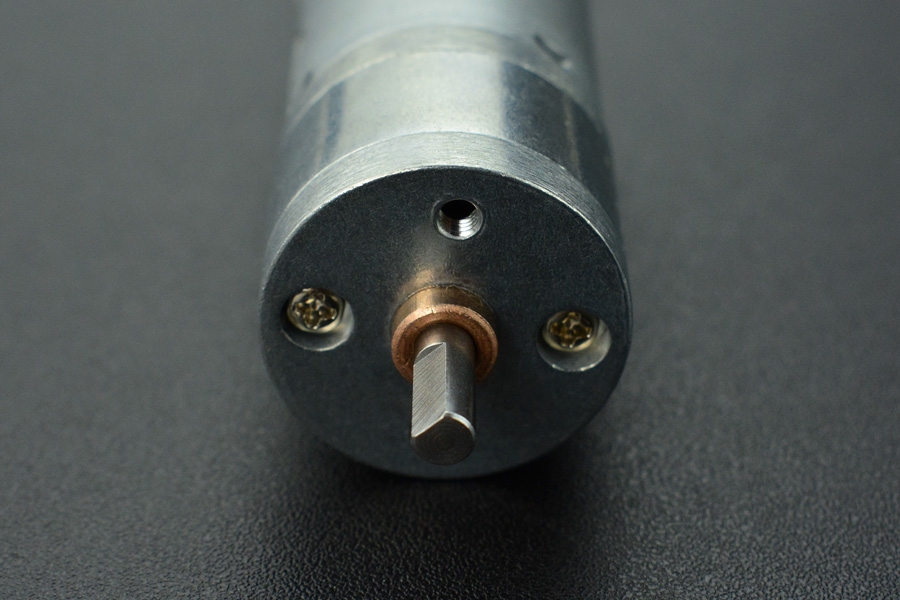

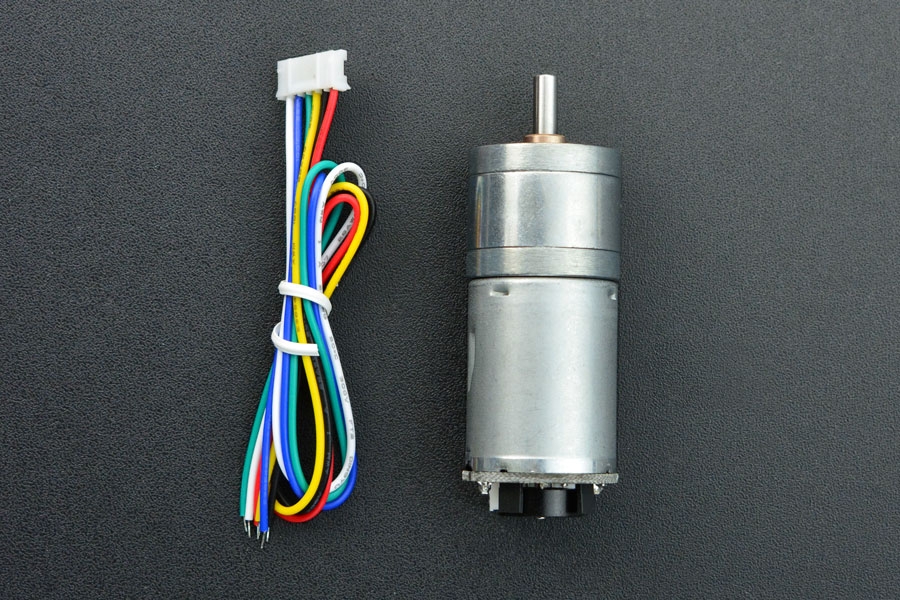

12V DC Motor 350RPM w/Encoder (12kg*cm) This is a gear motor with encoder. It is a motor with a 34:1 gearbox and an integrated quadrature encoder that provides a resolution of 11 pulse single per round giving a maximum output of 374 within one round. With an Arduino controller and motor driver , applications for this include a closed-loop PID control or PWM motor speed control. This motor is an ideal option for mobile robot projects. The copper output shaft, embedded thread and reinforced connector greatly extends the motor's service life. SPECIFICATION Rated Voltage: 12V Gear Reduction Ratio: 34:1 No-Load Speed: 350 rpm@12v No-Load Current: 20 mA Maximum efficiency point parameters: 2.0kg.cm/285rpm/5.0W/0.65A Maximum power point parameters: 5.8kg.cm/180rpm/9.0W/1.65A Stall current: 5.5A Stall torque: 12kg.cm Hall Feedback Resolution: 374 Weight: 98g DOCUMENTS Motor Interface Motor Dimension SHIPPING LIST 12V DC Motor 350RPM w/Encoder (12kg*cm) x1 6P*15cm connection cable x1 12V DC Motor 350RPM w/Encoder (12kg*cm). This is a gear motor with encoder. It is a motor with a 34:1 gearbox and an integrated quadrature encoder that provides a resolution of 11 pulse single per round giving a maximum output of 374 within one round.
12V DC Motor 350RPM w/Encoder (12kg*cm) This is a gear motor with encoder. It is a motor with a 34:1 gearbox and an integrated quadrature encoder that provides a resolution of 11 pulse single per round giving a maximum output of 374 within one round. With an Arduino controller and motor driver , applications for this include a closed-loop PID control or PWM motor speed control. This motor is an ideal option for mobile robot projects. The copper output shaft, embedded thread and reinforced connector greatly extends the motor's service life. SPECIFICATION Rated Voltage: 12V Gear Reduction Ratio: 34:1 No-Load Speed: 350 rpm@12v No-Load Current: 20 mA Maximum efficiency point parameters: 2.0kg.cm/285rpm/5.0W/0.65A Maximum power point parameters: 5.8kg.cm/180rpm/9.0W/1.65A Stall current: 5.5A Stall torque: 12kg.cm Hall Feedback Resolution: 374 Weight: 98g DOCUMENTS Motor Interface Motor Dimension SHIPPING LIST 12V DC Motor 350RPM w/Encoder (12kg*cm) x1 6P*15cm connection cable x1
Storja tal-prezzijiet
Storja tal-prezz medju
Punt tad-dejta wieħed għal kull jum, ikkalkulat bħala medja skont id-data tal-osservazzjoni.
$32.60
Il-medji jiġu kkalkulati għal kull jum UTC mill-prezzijiet kollha tal-offerti rreġistrati.
