DYNAMIXEL-X

DYNAMIXEL XC330-T181-T

Name: DYNAMIXEL XC330-T181-T
Brand: Robotis
SKU: 902-0170-000
Price: 103.39 USD
Availability: InStock

$103.39

Sale Sold out

Shipping calculated at checkout.

SKU: 902-0170-000

Weight: 0.1 lb

Shipping: Calculated at Checkout

Axial load limit: NA

Backlash: NA

Communications protocol: TTL, SBUS, iBUS, RC PWM

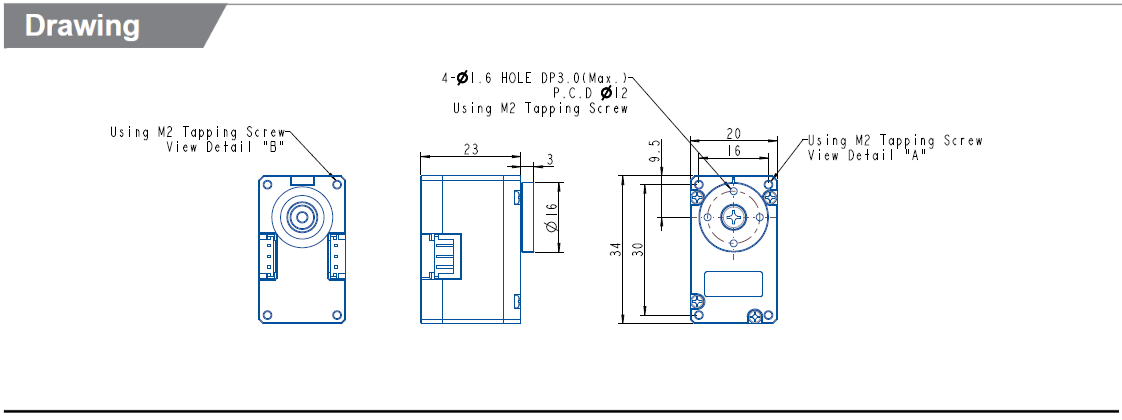

Dimensions: 20x34x26mm

Estimated rated torque: 0.152Nm

Estimated rated torque disclosure : This is an estimated value for continuous torque, calculated at 20% of stall torque.

Input voltage: 11.1v

No load rpm: 104RPM

Operating modes: Current Control Mode, Velocity Control Mode, Position Control Mode, Extended Position Control Mode, Current Based Position Control Mode, PWM Control Mode

Radial load limit: NA

Resolution: 4096 Steps

Size: X330

Special features: RC Protocols

Stall current: 0.8A

Stall torque: 0.76Nm

Standby current: 17mA

Supported baudrades: 9,600 ~ 4MBaud

Weight: 23g

View full details

Overview
Reviews
Key Features
Series Highlight
Compatible Accessories
Additional Information
Hardware Solutions
Software Solutions
Applications

Overview

Package Contents

Item Name	Quantity	Description
XC330-T181-T	1	DYNAMIXEL Servo
Robot Cable-X3P 180mm	1	TTL 3P Cable (JST - JST)
PHS M2x6 TAP	6	Bolts for horn attachment
PHS M2x8 TAP	10	Bolts for frame attachment

Supported Features

ROBOTIS Assurance - QC/QM Process, QC Sticker for each product, Certification, Highest Quality Materials & Product, Fast and On Time Delivery, Customization Options Available, B2B Partnerships, Expert and Timely Support, One Year Limited Warranty

Reviews

Key Features

Key Features of DYNAMIXEL XC330 Series

All-Metal Gear System for Enhanced Durability
The XC330 series features a full metal gear construction, significantly improving durability and resistance to wear compared to previous models.

Compact and Lightweight Design
With dimensions of 20x34x26 mm and weighing just 23g, the XC330 actuators offer a compact form factor suitable for space-constrained applications.

High-Resolution Feedback
Equipped with a 4096-step encoder, the XC330 provides precise position feedback, enabling fine-grained control in robotic systems.

Versatile Communication Protocols
The actuators support TTL, SBUS, iBUS, and RC PWM communication protocols, offering flexibility in integration with various control systems.

Multiple Operating Modes
The XC330 series supports six operating modes: Position Control, Extended Position Control, Velocity Control, Current Control, PWM Control, and Current-Based Position Control, providing versatility for different robotic applications.

Series Highlight

Compatible Accessories

Additional Information

Hardware Solutions

Introducing the OpenRB-150 - our latest foray into open-source Arduino compatible embedded controllers. Featuring the same pinout and form factor as the Arduino MKR, the OpenRB-150 provides seamless compatibility with Arduino MKR accessories, along with programming support via the Arduino IDE.

The OpenCR1.0 is powered by a powerful STM32F7 series chip and offers full compatibility with the Arduino programming environment, a range of built-in sensors, and multiple communication ports. This board, compatible with Arduino Uno format shields, provides an uninterrupted power supply feature and is packed with rich specifications in a compact size, making it an ideal choice for both beginners and expert developers.

The U2D2 is a compact USB communication converter designed to control and operate DYNAMIXEL servos through a connected PC. Both user-friendly and efficient, providing seamless interactions between your PC and DYNAMIXEL servos. The U2D2 offers excellent versatility with its support for both 3-Pin TTL connectors and 4-Pin RS-485 connectors, enabling connections with a wide variety of DYNAMIXEL units.

ROBOTIS prioritizes user convenience and flexibility, evident in our DYNAMIXEL servos' design. To support this commitment to flexibility, DYNAMIXEL servos can be commanded using any serial-capable master device a user prefers, as long as it supports half-duplex RS485 or TTL serial communications. This means whether your preferred device is a microcontroller, an industrial PLC, your personal laptop, or anything in between, you can seamlessly control and interact with DYNAMIXEL servos with minimal difficulty.

Software Solutions

Take full control of your DYNAMIXEL servos with our robust software ecosystem, specifically designed for seamless programming and control. Here's an overview of what's available

Leverage the power and versatility of DYNAMIXEL actuators with our multi-platform Software Development Kit (SDK). With support for popular programming languages and including clear APIs, sample code and comprehensive documentation, it simplifies the programming process, enabling a faster development cycle for your robotics projects.

Discover DYNAMIXEL Wizard, a comprehensive software solution designed to seamlessly manage and configure your DYNAMIXEL servos. With its intuitive interface, it simplifies servo configuration including register access, troubleshooting, and setup for daisy-chained configurations - making it an indispensable tool for all users.

DYNAMIXEL servos are also designed for seamless integration with the Robot Operating System (ROS 2). Leveraging ROS' comprehensive services and DYNAMIXEL's versatility, you can elevate your robotic systems, enabling complex interactions to power highly capable robotic systems.

Enhance your Arduino projects with DYNAMIXEL2Arduino, a library that enables direct control of DYNAMIXEL servos from Arduino boards. It offers a simplified, yet powerful platform for robotics and automation projects. Making it an ideal tool for makers, hobbyists, and educators.

Applications

DYNAMIXEL is more than just an actuator; it's a key to unlocking a world of possibilities. Here's a look at what you can create and achieve with our DYNAMIXEL servos.

In the realm of research, precision, repeatability, and adaptability are vital. DYNAMIXEL servos, designed with high precision capabilities and endless configuration possibilities, provide these elements. They support a wide spectrum of research areas, simplifying hardware design and allowing more focus on intellectual challenges and ground-breaking discoveries. With DYNAMIXEL, you're not just investing in a product, but a reliable partner for your explorations.

For the dynamic sphere of startups and commercial robotic product development, DYNAMIXEL actuators are indispensable, offering robustness, precision, and efficiency. With features such as high-resolution control, PID control, and versatile communication options, DYNAMIXEL servos ensure product resilience and adaptability, while their user-friendly design expedites your development process. Whether your focus is automation systems, commercial drones, or service robots, DYNAMIXEL provides the reliable performance and advanced technology your business needs.

DYNAMIXEL actuators offer artists an unmatched resource of creating remarkable kinetic installations, providing precision, control, and adaptability. They facilitate intricate, fluid movements, and their durability and versatility enable usage in diverse environments, freeing artists from constraints. With the DYNAMIXEL SDK, programming these actuators is made simple, turning artistic visions into stunning realities.
