Daily average price
Amounts in USD
1.300 mm
10 kg
From 1.000,00 € per month as a lease or with instalment payments.

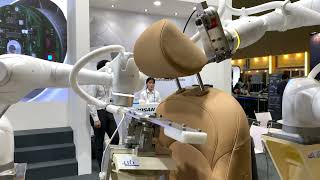

Cobots from Doosan Robotics automate quality control for car seats and headrests

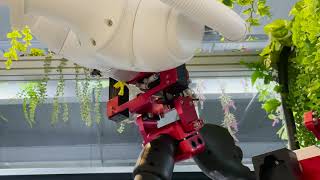

A Doosan Robotics M1013 cobot automates electric vehicle charging!

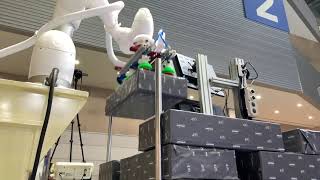

A Doosan Robotics cobot handles a palletizing application with ease
Reach
Payload
Repeatability
Weight
Reach
Payload
Repeatability
Weight

_228d4a3b.png)
_5a4b0b0c.png)










| Arm | ||
|---|---|---|
| Reach | 1.300 mm | |
| Payload | 10 kg | |
| Weight | 33 kg | |
| Performance | ||
|---|---|---|
| Max. linear TCP speed | 1 m/s | |
| Repeatability | 0,05 mm | |
| Min. operating temperature | 0 °C | |
| Max. operating temperature | 45 °C | |
| I/O connections | 6 digital inputs / 6 digital outputs / 0 analog inputs / 0 analog outputs | |
| I/O power supply | 24V & 3A | |
| Joint movement (range: ° / max. speed: ° /s) | ||
|---|---|---|
| J1 | -360 to 360 | ±120 |
| J2 | -360 to 360 | ±120 |
| J3 | -160 to 160 | ±180 |
| J4 | -360 to 360 | ±225 |
| J5 | -360 to 360 | ±225 |
| J6 | -360 to 360 | ±225 |
| J7 | - | - |
| Other Features | ||
|---|---|---|
| Mounting orientation | Any orientation | |
| Certificates | ISO TS 15066 ISO 10218 View all certificates here | |
| Control Box | ||
|---|---|---|
| Dimensions | 490x390x287 mm | |
| Weight | 9 kg | |
| I/O connections | 16 digital inputs / 16 digital outputs / 2 analog inputs / 2 analog outputs | |
| I/O power supply | 24V | |
| Communication | Serial (RS232) / USB 3.0 (RS422/485), TCP/IP. Modbus-TVP (master/slave) / Modbus-RTU (master) / EtherNet/IP (adapter) / PROFINET IO (device) | |
| Supply voltage | 100-240 VAC | |
| IP rating | IP40 | |
| Teach Panel | ||
|---|---|---|
| Dimensions | 264x218x42 mm | |
| Weight | 0,8 kg | |
| Cable length | 4,5 m | |
| IP rating | IP40 | |
The Doosan M1013 is part of the M-Series. The M-Series from Doosan is also known as the Masterpiece Series . The name reflects the product philosophy: premium Doosan robots of the highest quality!
The series is equipped with special sensors and delivers outstanding torque measurement accuracy. This precision can be put to use in applications such as welding, assembly, material removal, and machine tending.
Discover some of the advantages of the Doosan Robotics M1013
Reliable & Innovative
Cutting-edge control algorithm technology, built on a proven high-performance software platform. App-based programming.
Intuitive & Easy
A modern, intuitive user interface like those found on smartphones and tablets. A self-explanatory program structure.
Sensitive & Safe
Advanced functional safety based on highly sensitive torque sensors in all six joints, with a touch sensitivity of 0,2 Nm.
Excellent & Practical
Precise, versatile force control with remarkable performance.
Other Doosan Robots and Products
Download the datasheet for the Doosan robot here!

Download the STEP file for the Doosan M1013 Cobot here!
To place an order, send us an inquiry using the contact form at the bottom of the page or get in touch via chat.
Unchained Robotics is the largest marketplace for everything related to automation. We feature over 36 brands across 9 different categories, including Cobots, Grippers, Cameras, Starter Kits, End-of-Arm Accessories, Teaching Kits, Cobot Platforms and even
Services. Find out more on our About page.
We've put together the answers for you in a series of blog posts:
What to Consider When Choosing a Cobot – The Specs that Matter
The Top 10 Questions to Ask When Choosing a Robot
