UM7 Cable Assembly (one-way version)

UM7 Cable Assembly (one-way version)

UM7 Cable Assembly (one-way version)
Redshift Labs | A-000000-04005
€4.80 VAT incl. €4.00 VAT excl.

Including €0.02 for ecotax

This 5-pin cable designed for the UM7, the small module from Redshift Labs, is available in one-way and two-way versions!

Quantity
52 Available

Get it in 24/48h! (see T&C)

Create a cart and turn it into a quote instantly!
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

Cable for the UM7 orientation sensor: better safe than sorry

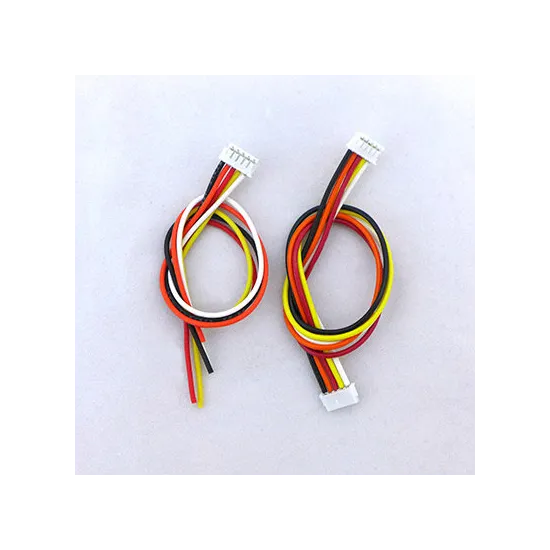

Your UM7 IMU comes with a compatible cable, but who knows what could happen? If you need to replace a damaged cable or simply wish to extend your connection possibilities, go for this 5-pin cable available in two versions: one-way (a connector on one end and 5 bare wires on the other) or two-way (a connector on both ends).

Technical specifications of the cable for UM7

  • JST ZHR-5(P) 5-pin connector
  • Cable length: 152.4 mm (+/-12.7 mm)
  • Voltage rating: 50V (AC, DC)
  • Current rating: 1A
  • Wire gauge: 26 AWG
  • Contact resistance: 20 mΩ max.
  • Temperature range: -25 to +85°C
