Unitree L1 PM LiDAR (Precision Measurement)
The Unitree L1 PM LiDAR is a precision-measurement LiDAR sensor designed for high-frequency 3D sensing, mapping, and robotic perception applications.
Measurement Performance
- Scanning distance: 20 m @ 90% reflectivity; 10 m @ 10% reflectivity
- Measurement accuracy: ±2.0 cm
- Nearby blind area: 0.05 m
- Sampling frequency: 43,200 points/s
- Effective frequency: 21,600 points/s
- Circumferential scanning frequency: 11 Hz
- Vertical scanning frequency: 180 Hz
Interfaces & Sensors
- Communication interface: TTL UART
- IMU: 3-axis accelerometer + 3-axis gyroscope
- 4D data output: 3D position + 1D grayscale
Safety & Environmental Performance
- Human eye safety: Class 1, IEC 60825-1:2014
- Anti-glare capability: >100 klux
Description
Unitree L1 PM LiDAR (Precision Measurement)
The Unitree L1 PM LiDAR is a precision-measurement LiDAR sensor designed for high-frequency 3D sensing, mapping, and robotic perception applications.
Measurement Performance
- Scanning distance: 20 m @ 90% reflectivity; 10 m @ 10% reflectivity
- Measurement accuracy: ±2.0 cm
- Nearby blind area: 0.05 m
- Sampling frequency: 43,200 points/s
- Effective frequency: 21,600 points/s
- Circumferential scanning frequency: 11 Hz
- Vertical scanning frequency: 180 Hz
Interfaces & Sensors
- Communication interface: TTL UART
- IMU: 3-axis accelerometer + 3-axis gyroscope
- 4D data output: 3D position + 1D grayscale
Safety & Environmental Performance
- Human eye safety: Class 1, IEC 60825-1:2014
- Anti-glare capability: >100 klux
Unitree
by
Unitree
Unitree L1 PM LiDAR (Precision Measurement)
SKU:
LIDAR-L1-PM
- Regular price
- $450.00
- Sale price
- $450.00
- Regular price
-
- Unit price
- per
Shipping calculated at checkout.
Providing the best new Tech Experience, Energy Independence and Robotics Ways of Optimisation
Providing the best new Tech Experience, Energy Independence and Robotics Ways of Optimisation
Packaging note:
Equipment is being supplied in a manufacturer packaging
Price history
Average price history
One data point per day, averaged by observation date.
$450
Averages are computed per UTC day from every recorded offer price.
Related Listings
Unitree Robotics L1 Pm LiDAR (Precision Measurement)
Unitree
$427
Unitree L1 RM LiDAR (Remote Measurement)
Unitree
$559
Unitree Robotics L1 Rm LiDAR (Remote Measurement)
Unitree
$531

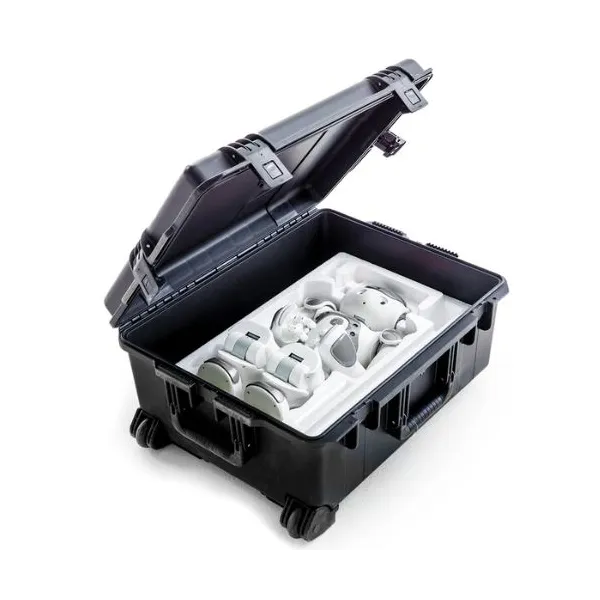

Carrying case for humanoid programmable NAO robot
Unitree
478.80 €

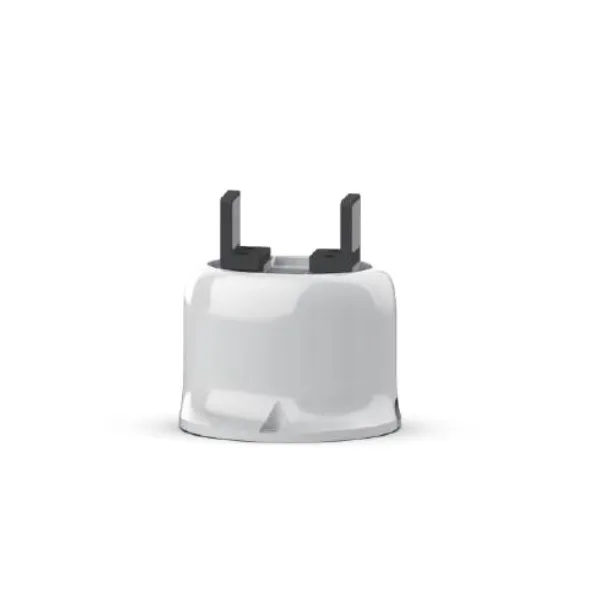

Gripper for Lite 6 robotic arm
