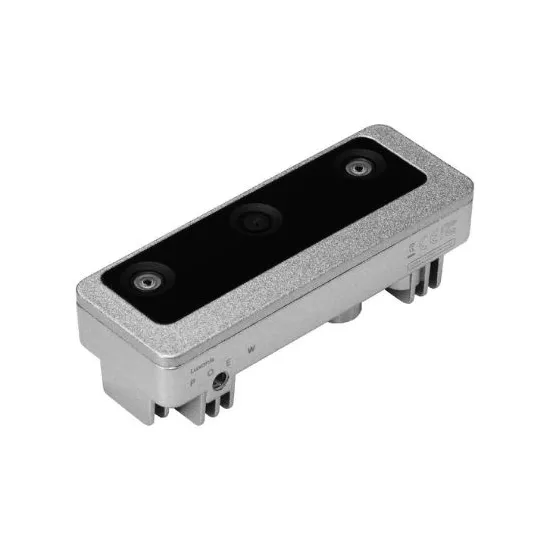

Luxonis OAK-D W Camera
Luxonis | A-000000-06317
€766.80 VAT incl.
€639.00 VAT excl.
Need a high-performance camera with a wide field of view? OAK-D W offers both options and is effective in a wide range of projects.
Version
-- Please select an item --
CENTRAL RGB CAMERA
-- Please select an item --
Quantity
1 Available
Get it in 24/48h! (see T&C)
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
A camera with an ultra-wide field of view
OAK-D W is a Series 2 OAK camera, it’s the wide field of view (FOV) version of OAK-D S2.
It’s an on-board camera that offers 4 TOPS of processing power and the ability to run any AI model directly on the device.
Its wide field of view (DFOV of approx. 120°) is ideal for projects demanding a broader coverage than that offered by standard models.
Left: normal field of view / Right: wide field of view
USB and PoE: the differences
The OAK-D Pro W comes in 2 versions:
- A USB version with a USB-C connector for power and communication
- A PoE version equipped with an industrial M12 PoE connector (instead of a single RJ45) for power and communication, plus an M8 connector for IO connectivity
Comes in 2 versions:
The standard versions of both models (USB and PoE) come with the IMX378 RGB camera, although there is also a more sophisticated version with a OV9782 RGB camera.
| Sensor | IMX378 | OV9782 |
| DFOV / HFOV / VFOV | 120° / 95° / 70° | 150°/127°/79.5° |
| Resolution | 12MP (4032x3040) | 1MP (1280x800) |
| Focus | FF: 60cm - ∞ | FF: 19.6 cm - ∞ |
| Max Framerate | 60 FPS | 60 FPS |
Technical specifications of the OAK-D W RGB camera
OAK-D W
- USB-C connector for both power and communication, supporting USB2 and USB3 protocols (5Gbps / 10Gbps)
- 4 TOPS of processing power (1.4 TOPS for AI)
- Run any AI model, even custom architectured/built ones
- Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
- Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking
- Object tracking: 2D and 3D tracking
- Dimension: 97x29.5x22.9 mm
- Weight: 91g
Package includes:
- OAK-D W camera
- Cable USB-CA-1m
OAK-D W PoE
- M12 X-Coded Ethernet, 802.3af PoE, 1 Gbps Ethernet
- M8 connector with quite a bit of IO flexibility, including USB2 host
- IP65 Sealed casing/protection
- Dimensions: 111x40x31.3mm
- Weight:184 g
Package includes:
- OAK-D W PoE camera
- M12 plug to RJ45 cable, 2m
- Cleaning cloth
PoE injectors are not included in the package.
Resources for the OAK-D W depth camera
