The iS-35 from AUBO is a cobot with a payload of up to 35 kg, a 2.100 mm working radius and repeatability of ±0,05 mm. It is suitable for handling heavy components, machine tending, palletizing, assembly, and spraying applications.
Reach

2.100 mm

Payload

35 kg

Technical questions

28.000,00 € excl. VAT.

From 1.000,00 € per month as a lease or in installments.

Leasing & Purchase Guide
  • Specifications
  • Overview
  • Description
  • Downloads
  • FAQ
  • Related Products

Overview

Featured on Unchained TV

Unfortunately, there are no application videos for this product yet.
Discover more robotics videos on Unchained TV.

Compare

Reach

Payload

Repeatability

Weight

2100 mm

35 kg

0.05 mm

172 kg

1650 mm

20 kg

0.1 mm

63 kg

1300 mm

12 kg

0.03 mm

36 kg

1647 mm

20 kg

0.05 mm

64 kg

Reach

Payload

Repeatability

Weight

in-the-box

Robot Image

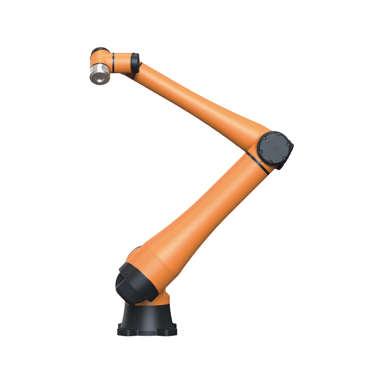

Robot
Robot Image

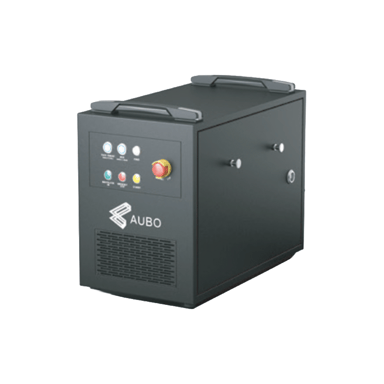

Controller
Robot Image

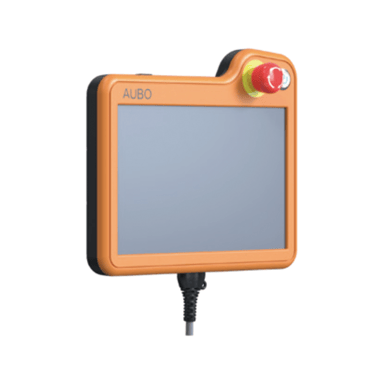

Teach Pendant

Specifications

Arm
Reach2.100 mm
Payload35 kg
Weight172 kg

Performance
Max. linear TCP speed4 m/s
Repeatability0,05 mm
Min. operating temperature 0 °C
Max. operating temperature50 °C

Joint motion (range: ° / max. speed : ° /s)
J1-360 to 360±113
J2-360 to 360±113
J3-360 to 360±123
J4-360 to 360±237
J5-360 to 360±237
J6-360 to 360±237
J7 --

Other features
IP classificationIP67
Mounting orientationAny orientation

Control Box
Dimensions400 x 320 x 240 mm
Weight18 kg
I/O connectionsDigital inputs: 16(Standard),16(Configurable)/8(Safety)
Digital outputs: 16(Standard),16(Configurable)/8(Safety)
Analog in: 2
Analog out: 2
RS485 Kommunikation: 2
I/O power supply24V / 3A Max
CommunicationEthernet, ModBus-RTU/TCP, Profinet, Ethernet/IP(optional)
IP classificationIP43

Teach Panel
Dimensions254 x 213,1 x 40,8 mm
Weight1 kg
Cable length4 m
IP classificationIP54

Description

The iS-35 from AUBO is a collaborative six-axis robot for automated handling and process tasks involving high payloads. With a payload of up to 35 kg, a working radius of 2.100 mm and repeatability of ±0,05 mm, it combines long reach with precise, repeatable movements. This makes the model suitable for production processes where heavy workpieces need to be moved or processed safely and consistently.

Each of the six joints is designed for a range of motion of ±360° and allows the robot to be positioned flexibly within the workspace. Optimized components and control algorithms support smooth movements and precise path control. The integrated modular design, featuring six standardized assemblies, makes it easier to replace individual components and supports ease of maintenance.

A multifunctional tool interface allows different end effectors to be connected, expanding the range of tasks the robot can perform. The compact controller and lightweight teach pendant support flexible integration into existing production environments. The enclosed housing is rated IP54 and can be upgraded to IP67, making the robot suitable for environments with greater requirements for protection against dust and moisture.

The iS-35 is designed for high-payload applications, such as machine tending, moving heavy components, palletizing, and assembly and manufacturing processes. Other applications include precision manufacturing and spraying. Its reach, payload, and protection options also make it suitable for use in harsh or sensitive production environments.

Downloads

Couldn't find what you were looking for?
Send us a message

FAQ

To place an order, send us an inquiry via the contact form at the bottom of the page or contact us via chat.

Unchained Robotics is the largest marketplace for everything related to automation. We have over 36 brands across 9 different categories, such as Cobots, Grippers, Cameras, Starter-kits, End-of-Arm-Accessories, Teaching-kits, Cobot platforms and even
Services. For more information, visit our About page.
