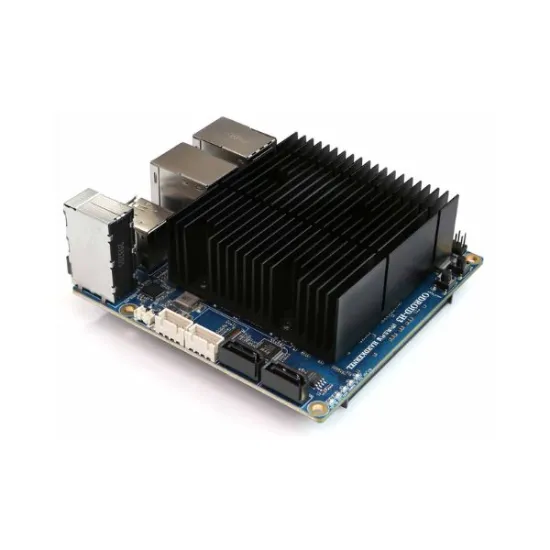

ODROID-H3+ Development Board
Hardkernel | A-000000-07125
€270.00 VAT incl.
€225.00 VAT excl.
Available with 64GB, the ODROID-H3+ development board stands out for its use of a Jasper Lake chip, Pentium N6005.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
Odroid-H3+ technical specifications
Processor:
- Intel Celeron N6005 (10nm, Quad-Core, TDP 10W)
- H3+(N6005): up to 3.3Ghz
- 4MB L2 cache
- Intel UHD graphics (24/32 EU up to 900MHz)
Memory:
- 2 SO-DIMM DDR4 1.2V slots
- Dual channel, up to 2933 MT/s (DDR4-PC23400)
- Maximum memory capacity 64GB
- DDR3/DDR5 are not supported
Storage:
- 1 eMMC connector (bootable and selectable in the BIOS)
- Various eMMC modules can be purchased from Hardkernel
- 2 SATA3 6Gbps ports (SATA Port-Multiplier is NOT compatible)
- 1 M.2 slot (PCIe 3.0 x 4, supports NGFF-2280 cards)
- SSD M.2 SATA is not supported
Network:
- 2 GbE LAN ports (RJ45, supports 10/100/1000/2500 Mbps)
- Realtek RTL8125B
- Supports wake-up by network
- LED indicators (Green: Link, Amber: Traffic)
Video:
- 1 DisplayPort 1.2 (up to 4K@60Hz)
- 1 HDMI 2.0 (up to 4K@60Hz)
- Dual simultaneous display support
Audio:
- 1 audio output (3.5 mm jack)
- 1 audio input (3.5mm jack)
- 1 SPDIF output (ALC1200, HDA codec)
- HDMI & DP also have an audio output.
External I/O:
- 2 USB 3.0 host ports
- 2 USB 2.0 host ports
- 1 peripheral expansion header (24-pin, 2.54mm pitch)
- 1 x DC 5V, 1 x DC 3.3V, 5 x GND
- 1 x UART (TXD/RXD/RTS/CTS)
- 2 x I2C (SCL/SDA)
- 1 x external power button
- HDMI CEC via add-on card, 5VA+
- 3 x USB 2.0
- All 3.3V I/O signal levels
Other features:
- Passive heat sink
- BIOS backup battery
- Maintains system time and BIOS settings
- Power button
- Reset button
- System LED indicators:
- Red (PWR) - Steady light when DC power is supplied
- Blue (left, SLEEP) - goes out only when the system enters standby mode
- Blue (right, PMIC) - lights up only when the main power rails are operating
- Amber (SATA) - Flashes during SATA data transfers
- Green (NVMe) - Flashes during NVMe data transfers
- Connector for active cooling fan (12V 4-pin, PWM input + TACHO output)
- Active cooling fan is optional
- Connector (4-pin, 2.54mm pitch)
Power supply:
- DC socket: outside diameter (earth) 5.5mm, inside diameter (positive) 2.1mm
- DC 14V ~ 20V (up to 60W)
- DC 15V/4A power adapter recommended if you're not using two 3.5" hard drives
- DC 19V/7A power adapter recommended if using two 3.5" hard drives together
Energy consumption:
- IDLE: ≃1..9W
- CPU stress: ≃15W
- CPU+GPU stress: ≃18W<
- Switch-off: ≃0.25W<
- Standby: ≃0.6W
- Dimensions: 110mm x 110mm x 47mm
Odroid-H3+ resources
