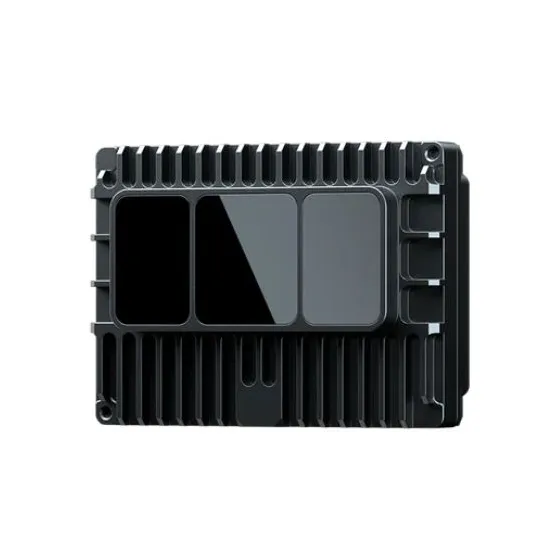

Robosense E1R LiDAR

Name: Robosense E1R LiDAR
Brand: RoboSense
SKU: d4d20537-4d8f-4684-9798-37c6e1c583e3
Price: 1194 EUR
Availability: InStock

Robosense | A-000000-07645

€1,194.00 VAT incl. €995.00 VAT excl.

The E1R is a LiDAR sensor offering a 120°×90° field of view, a detection range of up to 75 m, and high-density point cloud output. Compact, reliable, and precise, it is ideal for navigation, mapping, and obstacle avoidance in all robotic applications.

Quantity

Delivery within 3 to 4 weeks

Ask for a quote

Create a cart and turn it into a quote instantly!

Payment methods (see T&C)

E1R – Ultra-Compact Digital 3D LiDAR for Autonomous Robots

The E1R is the first fully solid-state digital LiDAR designed for intelligent robots and demanding environments. Based on a high-end automotive platform, it combines compact design, high performance, and industrial-grade reliability. With a 120°×90° ultra-wide field of view and a range of up to 75 meters, it enables accurate detection of objects, distances, and contours even in extreme lighting conditions.

Perfect for applications such as autonomous navigation, 3D mapping, and obstacle avoidance, the E1R is already used in delivery robots, cleaning robots, humanoid robots, and even drones.

Main features

Ultra-wide field of view: 120° × 90° for extended coverage
Long-range detection: Up to 75 m (30 m @ 10% reflectivity)
High data rate: 260,000 points/second with 144 beams for high-density point cloud
Proprietary SPAD-SoC technology: Over 250,000 pixels, improved detection accuracy
2D VCSEL electronic scanning: Fast scanning, no moving parts
Ultra-compact design: 7×35×75 mm with flat window, easy integration
Extreme durability: Operates from -40°C to +85°C, IP67 / IP6K9K protection, shock resistance

Benefits for your robots

Precise autonomous navigation indoors and outdoors
Reliable 3D mapping of roads, warehouses, and urban or industrial areas
Real-time detection of static and dynamic obstacles (pedestrians, vehicles, cones…)
Easy integration with flat design and standard 1/4" mount
Adapted to extreme conditions, dust, rain, and strong lighting
