Servo - Generic (Sub-Micro Size)

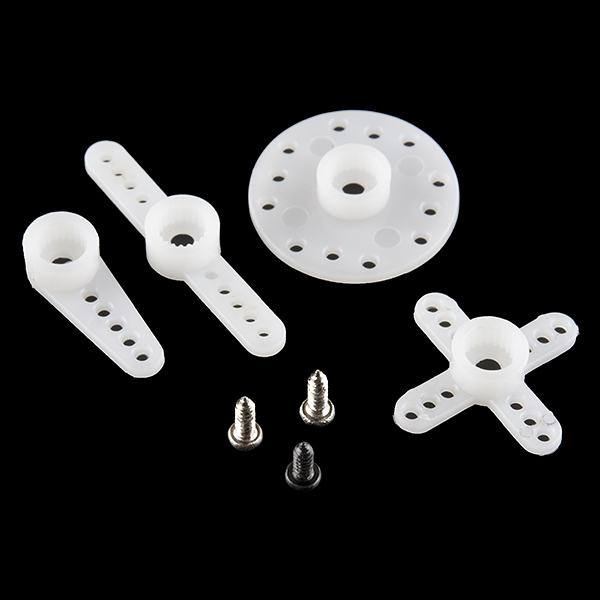

Here is a simple low-cost high quality servo for all your mechatronic needs. This servo is very similar in size and specifications to the Hitec HS-55. This little guy is able to take in 6 volts and deliver 20.8 oz-in. of maximum torque at 0.10 sec/60 This small servo comes with a standard 3 pin power and control cable and all hardware listed below.Note: This servo is rated for 180 rotation but in actuality it only hits ~160 .Features:Voltage: 4.8-6.0 VoltsTorque: 16.6/20.8 oz-in. (4.8/6.0V)Speed: 0.15/0.10 sec/60 (4.8/6.0V)Rotation: ~160 Single Top Ball BearingNylon Gears3-Pole Ferrite MotorIncludes:1x Micro Size Servo1x Single Arm Micro Horn1x Double Arm Micro Horn1x Four Point Micro Horn1x Circle Micro Horn2x 2x8mm Phillips ScrewDimension:31.8 x 11.7 x 29mmWire Length: 160mmWeight: 9gDocuments:Datasheetmbed Example
