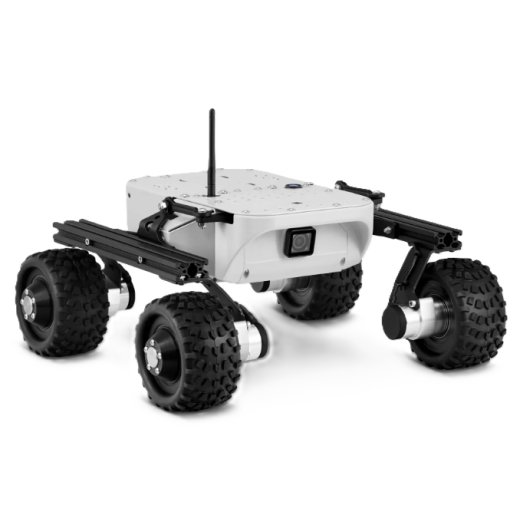

Fictionlab Leo Rover Outdoor UGV 1.9

  • Artikel number: MBS-ROB-11
  • Category: Vehicles
  • Manufacturer: fictionlab sp. z o.o.

Leo Rover

  • Water-repellent / suitable for outdoor use
  • Payload: 5Kg
  • Range: 100m WiFi
  • Operating time: 4h
  • IP standard: IP55

Description

The Leo Rover is a compact, outdoor-ready (IP55) robot that runs on a Raspberry Pi 5 with LeoOS (Ubuntu-based) and can therefore be fully programmed and controlled using ROS 2. The in-house LeoCore controller board with integrated IMU handles motor control and power distribution. Pre-installed packages, such as web-based teleoperation, make it easy to get started and put theoretical knowledge into practice in no time.

New in version 1.9

  • Raspberry Pi 5 with 4 GB RAM (previously Raspberry Pi 4B)
  • Switch from ROS to ROS 2
  • Redesigned Main Electronics Box: passive cooling, metal heat-dissipation plate, USB-C instead of Micro-USB
  • Reinforced suspension: bolted suspension beams with self-locking nuts
  • Optimized rim geometry for a secure tire fit
  • Individual ID plate for each Rover

Add-ons

Thanks to its high payload capacity of up to 5 Kg, the Leo Rover can be equipped with various additional components. Some are listed below. If you would like to use the Rover for another application, please feel free to contact us at any time:

Leo Rover top view
Technical data
Parameter Value
Dimensions (L × W × H) 424 × 445 × 303 mm
Weight approx. 7 kg
Max. payload approx. 5 kg
Max. speed approx. 0,4 m/s
Max. obstacle height approx. 70 mm
Climbing ability 45° (also with 5 kg payload)
Ground clearance 108 mm
Protection class IP55
Operating temperature -10 °C to +40 °C
Operating time up to 4 h
Range (Wi-Fi) up to 100 m
Computer Raspberry Pi 5, 4 GB RAM
Controller LeoCore (STM32F401), input voltage 8–30 V DC
IMU integrated (accelerometer & gyroscope)
Motors 4 × Bühler DC wheel hub motors, planetary gearbox 73,2:1, encoder
Camera Arducam 12,3 MP HQ, 158° wide-angle lens
Wi-Fi Dual-band 2,4 / 5 GHz (Alfa AWUS036ACS), external antenna
Battery Li-Ion 3S2P, 10,8 V, 6.800 mAh (approx. 73 Wh), integrated BMS
Charger 12,6 V / 2 A, incl. Weipu-to-barrel-plug adapter
Software LeoOS (Ubuntu-based), ROS 2, web interface
Scope of delivery
  • Leo Rover Developer Kit

Only standard tools, such as a set of screwdrivers and a set of Allen keys, are required for assembly. If you choose the fully assembled unit, the Leo Rover will be delivered fully assembled and tested.

Product attribute Value
Shipping weight: 8,00 kg
Item weight: 7,00 kg
