DOBOT Magician Basic & Education

  • Artikel number: MBS-DOB-01
  • GTIN: 0756832455821
  • HAN: F23105565
  • Category: Robots
  • Manufacturer: DOBOT

Dobot Magician Basic / Extended robot arm for educational institutions

  • 3D printing conversion kit (hotend, Bowden tube and feeder)
  • Vacuum gripper
  • Vacuum pump
  • Vacuum suction cup
  • Bluetooth module
  • Writing and Drawing Set
  • Wi-Fi module
  • Joystick control

Description

See for yourself—read our short introduction to the Dobot Magician

General

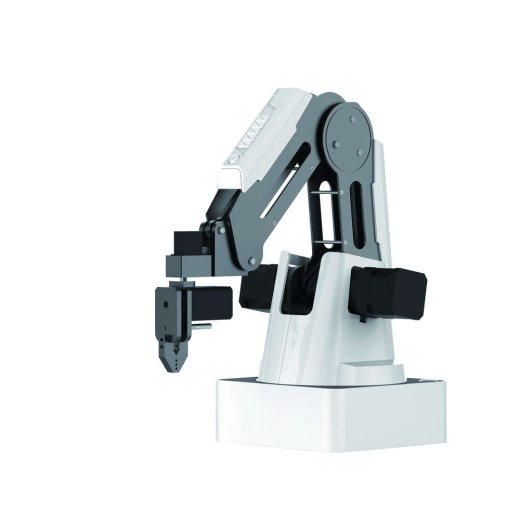

The Dobot Magician is a 4DOF (Degrees of Freedom) robot arm. This robot is designed for use in educational institutions, such as schools, vocational training centers, colleges and universities. Thanks to its built-in geared stepper motors and control electronics, the Dobot is both extremely quiet and highly precise. Its repeatability can be as high as 0.02mm, making it suitable for a wide range of applications. The included tools let the Dobot pick up objects, draw digital diagrams on a smooth surface, and even create 3D models using 3D printing. The Dobot can also be controlled and integrated via the included Bluetooth module and the separately available Wi-Fi module.

The Dobot transforms into a 3D printer

Converting the Dobot Magician robot arm for use as a 3D printer is very simple. All you need to do is attach the included hotend (print head) to the Dobot, plug in the cables and connect the feeder that transports the filament. You can then connect the robot to a computer and start printing with RepetierHost or Cura.

Technical specifications

Degrees of Freedom

4

Payload

Max. 500g

Reach

320mm

Data transmission

USB/Bluetooth/WLAN

Power consumption

60W

Operating temperature

-10°C - +60°C

Dobot weight without accessories

3,4Kg

Total weight incl. accessories

7,2Kg

Footprint

158 x 158mm

Software

DobotStudio / RepetierHost / Cura

SDK

Communication protocol, Dobot program library

Materials processed

6061 aluminum alloy, ABS engineering plastic

Package dimensions

340mm × 300mm × 400mm

Motion range and positioning times

Axis

Degrees

Positioning time at 250g

Base

-135° to +135°

320°/s

Upper arm

0° to +85°

320°/s

Forearm

-10° to +95°C

320°/s

Scope of delivery

Basic Version:

  • Dobot robot arm
  • 3D printing conversion kit (hotend, Bowden tube and feeder)
  • Vacuum gripper
  • Vacuum pump
  • Vacuum suction cup
  • Bluetooth module
  • Writing and Drawing Set

Education / Extended Version:

  • Wi-Fi module
  • Joystick control
Product attribute Value
Shipping weight: 7,00 kg
Item weight: 4,00 kg
